Ducoterra SolaRay II Heating Panel – ceiling mount

$369.00$919.00

Ducoterra SolaRay II Heating Panel, experience sun-like warmth in your home or office with the world’s thinnest radiant heating panel!



Ducoterra SolaRay II Heating Panel has been refined over the years and boasts as the lowest profile flush mount heating panel on the market with the only lifetime warranty!

  • Energy savings of 20-50% over traditional heating systems
  • World’s thinnest flush mount heating panel @ 1/2″ / 1.27 cm
  • Sun-like warmth evokes a feeling of well being
  • Heats rooms individually
  • Use with traditional or Wi-Fi controls
  • Lifetime warranty – the longest in the industry
  • Engineered to run continuously for 40 years/350,000 hours.
  • White finish or use acrylic paint
  • Made in USA

How much heat do I need?

  • Supplemental: 3 – 5+ watts/sq.ft.
  • Primary: 6 – 8+ watts/sq.ft.

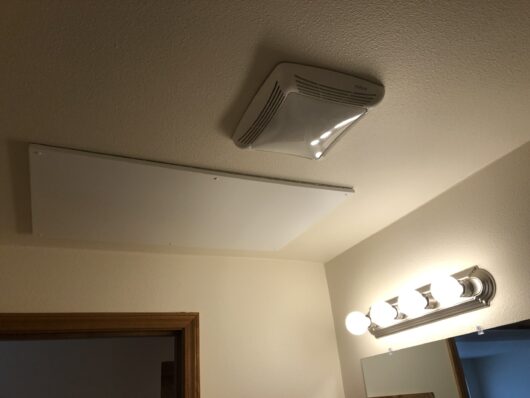

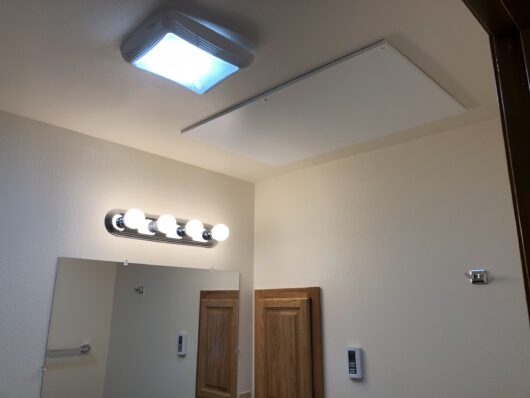

  • Bathrooms: 10 watts+/sq. ft.

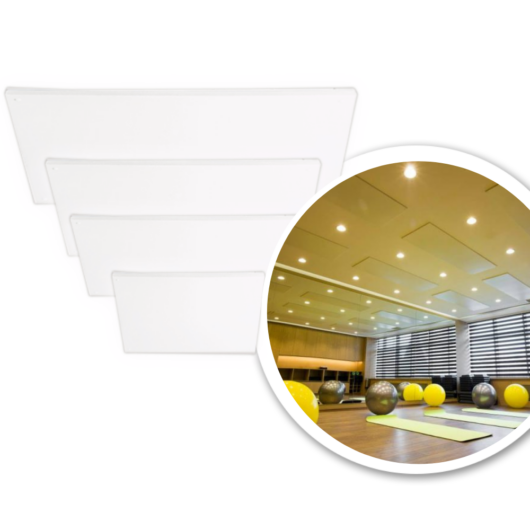

  • Yoga Studio: 15 – 30 watts/sq.ft.

Choose a heater:

Choose a thermostat:

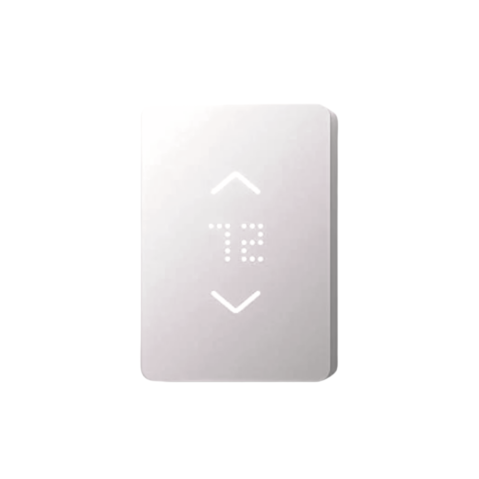

Mysa Smart Thermostat - Wi-Fi - Line Voltage

Mysa Smart Thermostat - Wi-Fi - Line Voltage the customization of a smart thermostat in your home with the simplicity of installing a light switch!

  • Mysa is the premiere smart thermostat for electric home heat, saving up to 30% on your electric heat bills!



Honeywell/Aube - line voltage programmable thermostat - indoor

Honewell/Aube line voltage programmable thermostat indoor, save money by programming to heat individual rooms to a desired time and temperature!

Honeywell/Aube - line voltage manual thermostat - indoor

  • Similar to a light switch/light, save money by only heating the rooms you want with a simple manual control

What makes the SolaRay special?pryogel solaray insulation

The SolaRay heater contains a layer of one of the most efficient insulations in the world called “Pyrogel”. This space-age material combines Aerogel with reinforced fibers. This is what makes the SolaRay the world’s thinnest infrared heating panel and one of the most efficient. All the of the heat is transferred where it needs to be… warming you and your room.

The SolaRay makes no noise, emits no VOC, and has a lifetime warranty. It will seamlessly blend into any room and can easily be painted to match your interior.

How much heat do I need?

  • Supplemental heat source: 3 – 5+ watts/sq.ft.
  • Primary: 6 – 8+ watts/sq.ft.
  • Yoga Studio: 15 – 30 watts/sq.ft.

Features & Benefits:

  • 1/2″ “thin”, the lowest profile in the industry
  • Energy savings of 20-50% over traditional heating systems
  • Now 50% – 60% lighter than the previous-generation panel

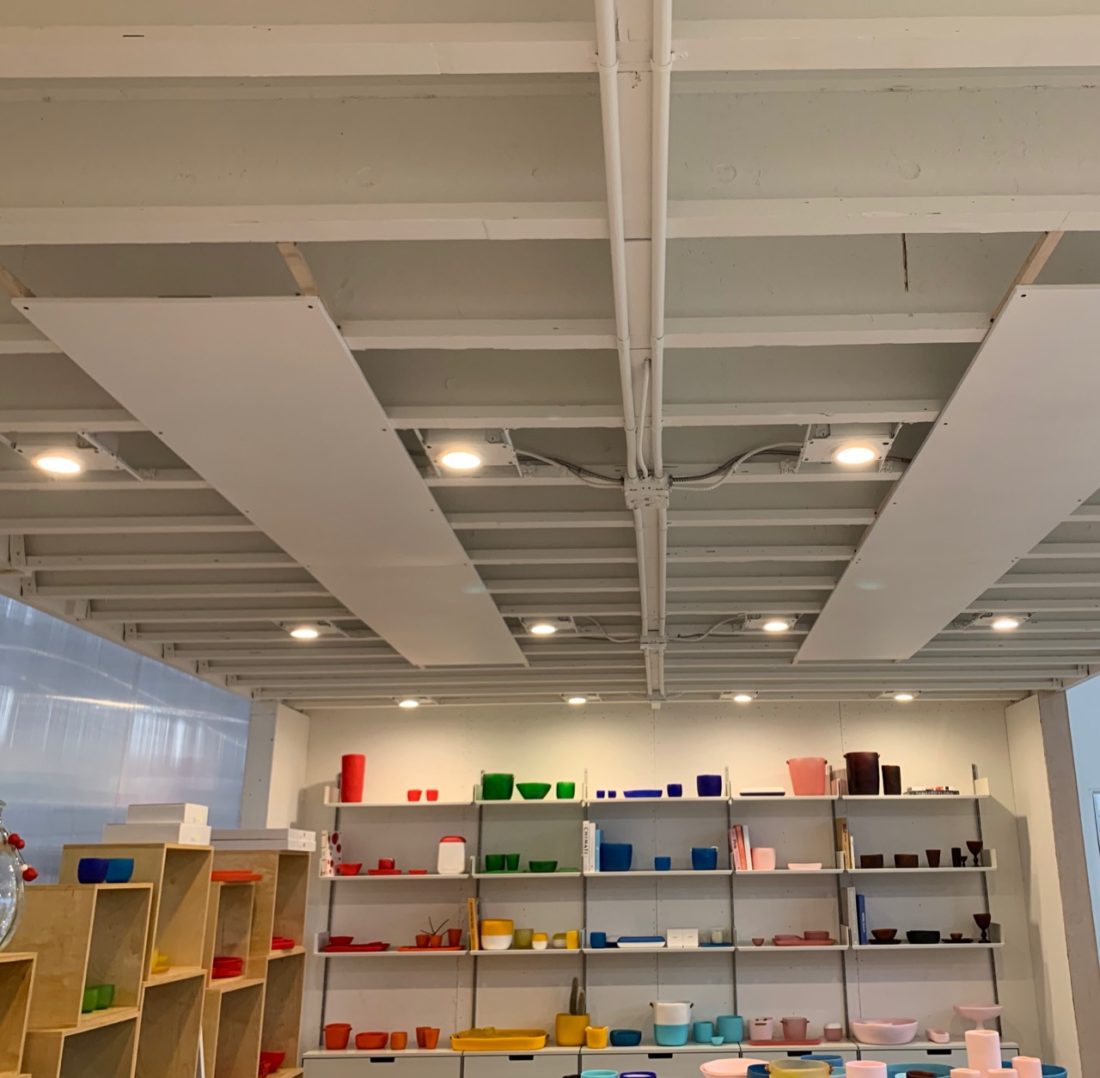

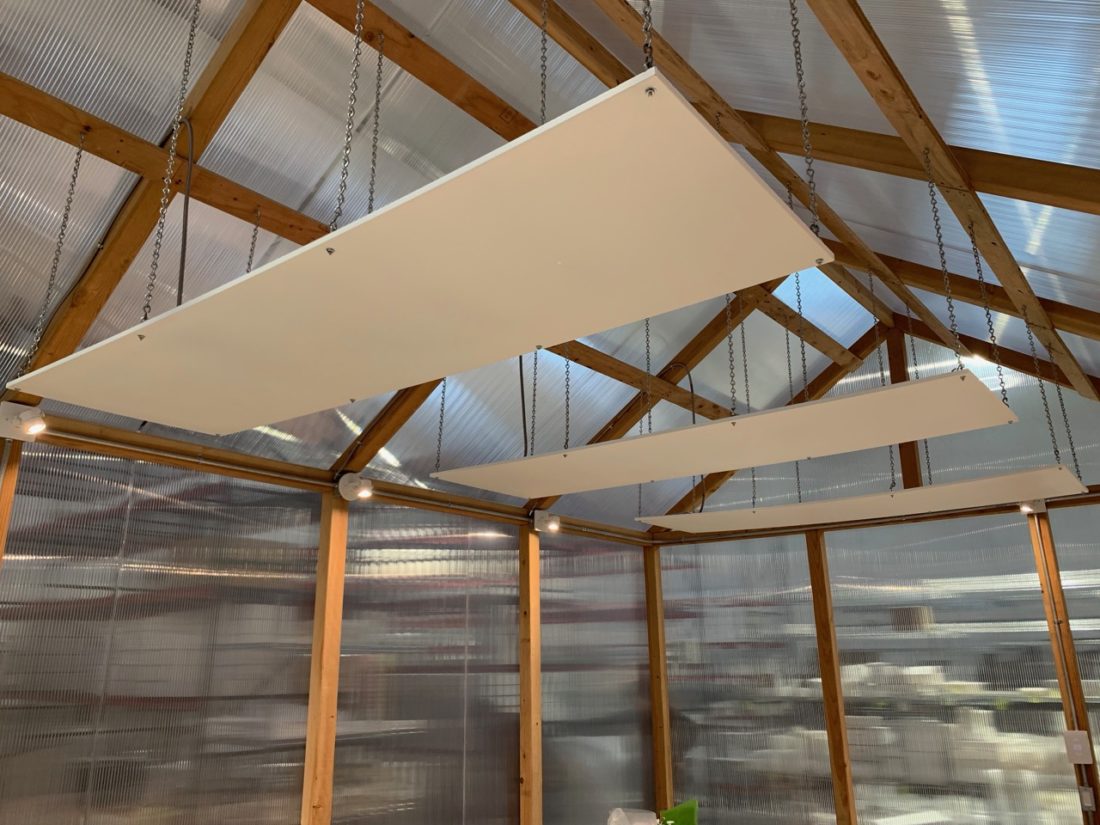

  • Mounts flat against ceiling or can be suspended
  • Maximum surface temperature: 225° F/107C
  • UL/ETL (Approved for the US and Canada)
  • Far infrared spectrum (FIR) heater
  • Pays for itself in energy savings and requires no maintenance
  • Hard wired 120, 208, and 240 volts. NOTE: Does not plug into a 120-volt electrical outlet.
  • Controlled with hard-wired, wall-mounted line voltage thermostat
  • Available in powder coated white and can be painted with acrylic interior paint
  • Designed and manufactured in Washington state
  • Intertek ETL for US and Canadian certified
  • Additional voltages available. Please contact us
  • Lifetime warranty, the longest in the industry
  • Made in the USA

Specifications

SolaRay Heating Panel Specifications:

NOTE: Specifications are shown at 240 volts, also available at 120 and 208 volts.

Size Watts Amps BTUs
22.5"x22.5" 200 0.8 682
22.5"x22.5" 250 1.0 853
22.5"x36" 300 1.3 1,024
22.5"x36" 375 1.6 1,280
22.5"x48" 400 1.7 1,365
22.5"x48" 500 2.1 1,706
22.5"x72" 600 2.5 2,048
22.5"x72" and 22.5x48" 750 3.1 2,560
22.5"x72" 1,000 4.2 3,413

Heater Sizing

How much heat do I need? This is a common question and you will find an easy guideline below, and this assumes the following but not limited to:
  • A desired temperature of 68-70F/20-22C
  • A hard ceiling (i.e. wood or drywall), not to exceed 10' above the floor
  • Insulated to or above the current code see Insulation on this page for a reference
  • Conditioned (heated) rooms around the desired room to heat



  • Supplemental heating: 3 – 5+ watts/sq.ft. of floor space
  • Primary: 6 – 8+ watts/sq.ft. of floor space
  • Yoga Studio: 15 – 30 watts/sq.ft. of floor space
  • For a quicker warm up time...
    • Maximize insulation in all areas, especially the ceiling as warm air rises
    • Stop and prevent any air leaks
    • Insulate over any heat sinks i.e. an exposed slab on grade floor will pull or wick energy out of the room quickly
    • Oversize to at the least the next heater size if you desire to use the heaters as more of a "on demand" solution

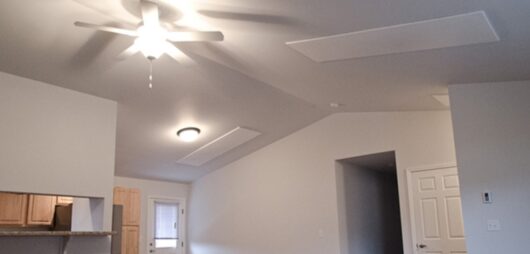

High Density units (93.75 Wsf & 83.33 W/sf of panel) - 2x4 750W & 2x6 1000W are intended for use in 9 ft and higher installations, such as on vaulted ceilings. The 2x4 750W is slightly more intense even than the 2x6 1000W and is primarily in the catalog for Hot Yoga studio purposes.
Low Density units (50 W/sf of panel) - 2x2 200W, 2x3 300W, 2x4 400W, 2x6 600W are intended for use in sub-8 ceiling height situations, like basement ceilings measuring 7'6" (or lower!)
Nominal Density units (62.75 W/sf of panel) - 2x2 250W, 2x3 375W, 2x4 500W, 2x6 750W are intended for use in the 8-9 ceiling range
